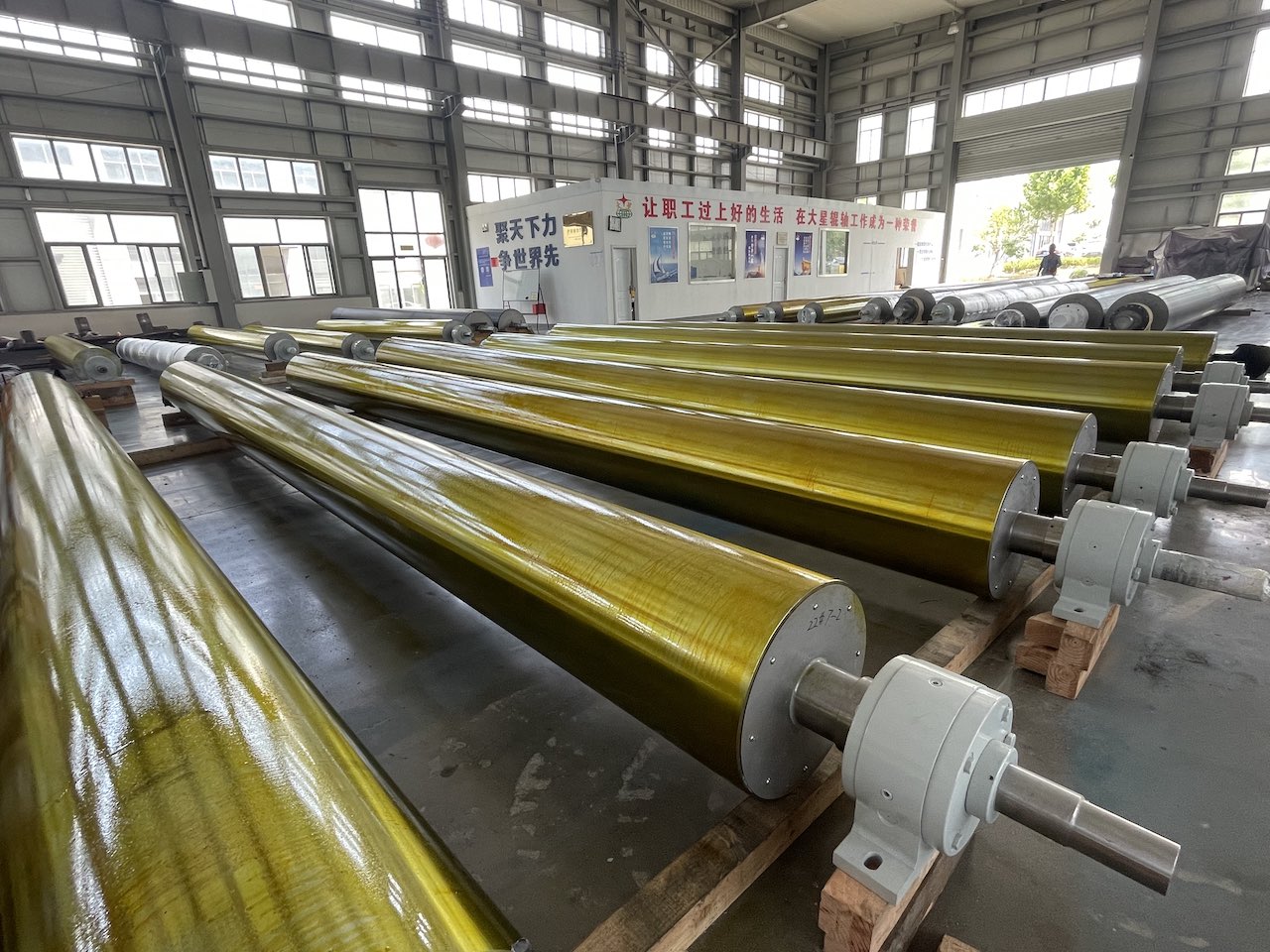

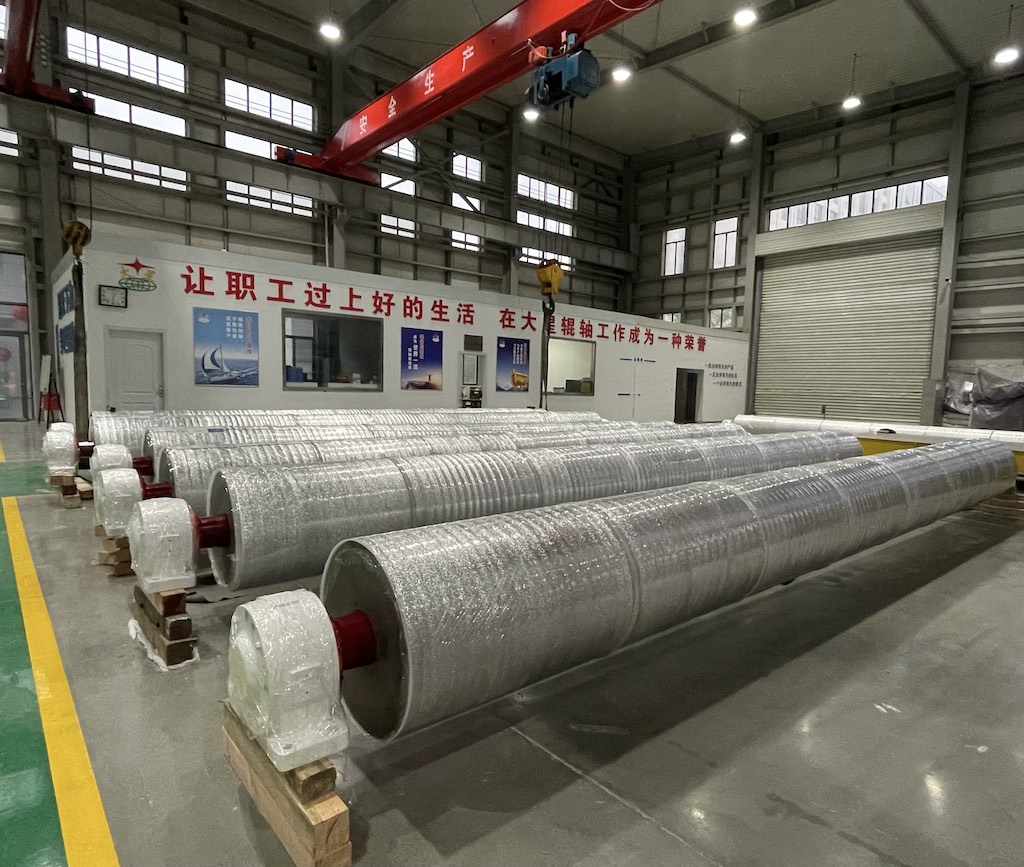

Coating Gate Roll
A tube rolls with good performance is crucial for the operation of a paper machine.
High reliability and easy maintenance in the event of accidents are also important requirements for these rolls.
To meet these special needs, high-precision tube rollers with optional quick replacement heads have been developed.
Dynamic Balance In Accordance With ISO1940 Standards
Quality Grades G1.0, G1.6 and G2.5
Coating Gate Roll for high speed tissue paper ,packing paper ,krafter paper machine .
coating gate roll | Manufacturing Standard Shell in seamless steel pipe or rolled and welded steel plate Bulkhead in HT250 or QT500-7 Journal in 42Crmo or Forged 42Crmo |
Optional Grease or thin oil lubrication Rubber cover or Chromed plating | |
Supply limits Max Diameter: 1000mm Max Face length: 14000mm Max Balancing speed: 2500m/min With Center dynamic deflection testing |
